Product Summary
The SAA7146AH, Multimedia PCI-bridge, is a highly integrated circuit for DeskTop Video (DTV) applications. The SAA7146AH provides a number of interface ports that enable a wide variety of video and audio ICs to be connected to the PCI-bus thus supporting a number of video applications in a PC.
Parametrics
SAA7146AH absolute maximum ratings: (1)digital supply voltage: 3.0 to 3.6V; (2)total digital supply current: 400mA; (3)LLC input clock frequency: 32MHz; (4)PCI input clock frequency: 33MHz; (5)I2S input clock frequency: 12.5MHz; (6)operating ambient temperature: 0 to 70℃.
Features
SAA7146AH features: (1)Processing of maximum 4095 active samples per line and maximum 4095 lines per frame; (2)Vanity picture (mirror) for video phone and video conferencing applications; (3)Video flip (upside down picture); (4)Colour space conversion with gamma correction for different kinds of displays; (5)Chroma Key generation and utilization; (6)Pixel dithering for low resolution video output formats; (7)Brightness, contrast and saturation control.

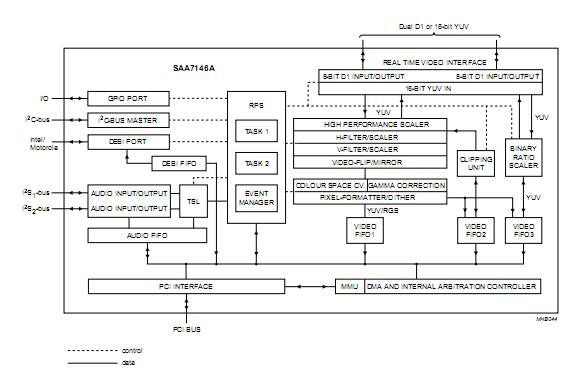

Diagrams
