Product Summary
The STM32F103C8T6 medium-density performance line incorporates the high performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103C8T6 offers two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN. The STM32F103C8T6 medium-density performance line includes devices in six different package types: from 36 pins to 100 pins.
Parametrics
STM32F103C8T6 absolute maximum ratings: (1)External 3.3 V supply voltage (including VDDA and VDD), VDD-VSS: -0.3 to 4.0V; (2)Input voltage on five volt tolerant pin, VIN: VSS-0.3 to +5.5V; (3)Input voltage on any other pin, VIN: VSS-0.3 to VDD+0.3; (4)Variations between different power pins, |ΔVDDx|: 50mV; (5)Variations between all the different ground pins, |VSSX-VSS|: 50mV.
Features
STM32F103C8T6 features: (1)Core: ARM 32-bit Cortex-M3 CPU; (2)32-to-128 Kbytes of Flash memory; (3)6-to-20 Kbytes of SRAM; (4)2.0 to 3.6 V application supply and I/Os; (5)4-to-16 MHz quartz oscillator; (6)Internal 8 MHz factory-trimmed RC; (7)Internal 32 kHz RC; (8)PLL for CPU clock; (9)Low power; (10)2 x 12-bit, 1 μs A/D converters (16-channel); (11)7-channel DMA controller; (12)Serial wire debug (SWD) & JTAG interfaces; (13)Up to 80 fast I/O ports; (14)Up to 7 timers; (15)Up to 9 communication interfaces.

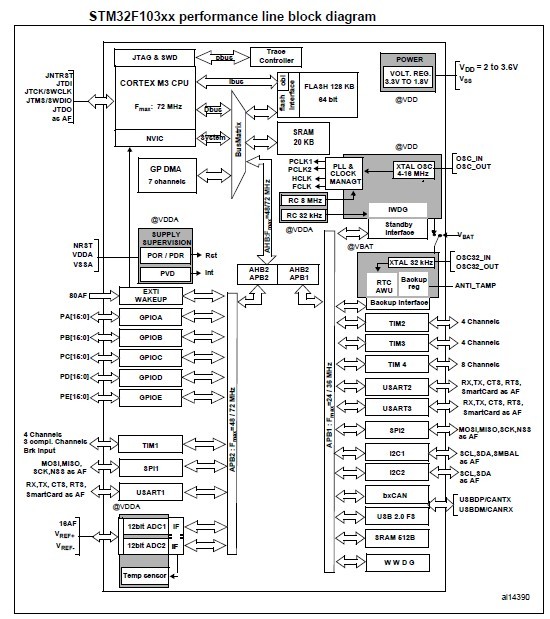

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STM32F103C8T6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 64KB 20KB RAM 2X12 ADC |
Data Sheet |
|
|
|||||||||||||
STM32F103C8T6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 USB 7 TIMERS 2 ADCS CAN |
Data Sheet |
|
|
