Product Summary
The MIC29152WU is a high current, high accuracy, low-dropout voltage regulators. Using Micrel proprietary Super βeta PNP process with a PNP pass element, these regulators feature 350mV to 425mV (full load) typical dropout voltages and very low ground current. Designed for high current loads, these devices also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. The applications of MIC29152WU include: battery powered equipment, high-efficiency Green computer systems, automotive electronics, high-efficiency linear lower supplies and high-efficiency lost-regulator for switching supply.
Parametrics
MIC29152WU absolute maximum ratings: (1)Input Supply Voltage(1): –20V to +60V; (2)Power Dissipation: Internally Limited; (3)Storage Temperature Range: –65℃ to +150℃; (4)Ambient Temperature Range (soldering, 5 sec.): 260℃; (5)Maximum Operating Input Voltage: 26V; (6)Operating Junction Temperature: –40 to +125℃.
Features
MIC29152WU features: (1)High current capability: 1.5A; (2)Low-dropout voltage; (3)Low ground current; (4)Accurate 1% guaranteed tolerance; (5)Extremely fast transient response; (6)Reverse-battery and load Dump protection; (7)Zero-current shutdown mode (5-pin versions); (8)Error flag signals output out-of-regulation (5-pin versions); (9)Also characterized for smaller loads with industryleading performance specifications; (10)Fixed voltage and adjustable versions.

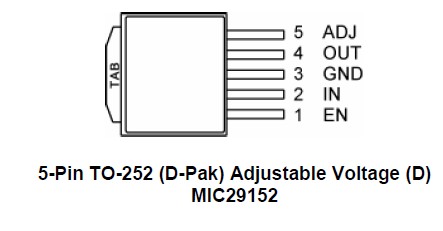

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC29152WU |
|
IC REG LDO ADJ 1.5A TO-263-5 |
Data Sheet |
|
|
||||||||||||||
|
MIC29152WU TR |
|
IC REG LDO ADJ 1.5A TO263-5 |
Data Sheet |
|
|
||||||||||||||
