Product Summary
The SN74HC373NSR is a kind of 8-bit latch features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Parametrics
SN74HC373NSR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 1):±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 1): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, θJA (see Note 2): DB package>: 70℃/W; DW package: 58℃/W; N package: 69℃/W; NS package: 60℃/W; PW package: 83℃/W; (7)Storage temperature range, Tstg: -65 to 150℃.
Features
SN74HC373NSR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current 3-State True Outputs Can Drive Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 13 ns; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Eight High-Current Latches in a Single Package; (8)Full Parallel Access for Loading.

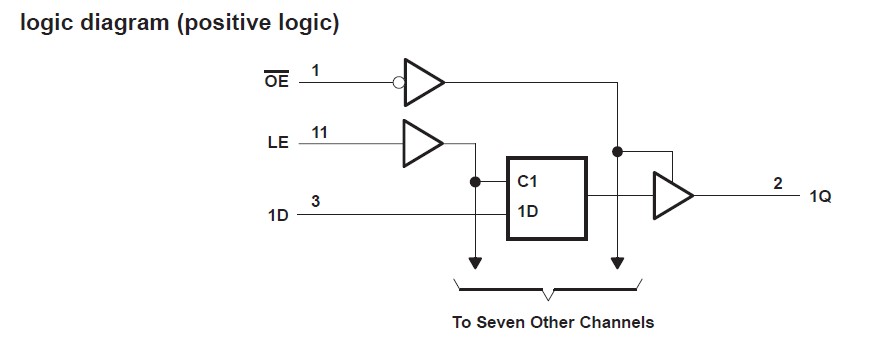

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC373NSR |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
|
SN74HC373NSRE4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
|
SN74HC373NSRG4 |
Texas Instruments |
Latches Tri-St Octal D-Type |
Data Sheet |
|
|
||||||||||||
